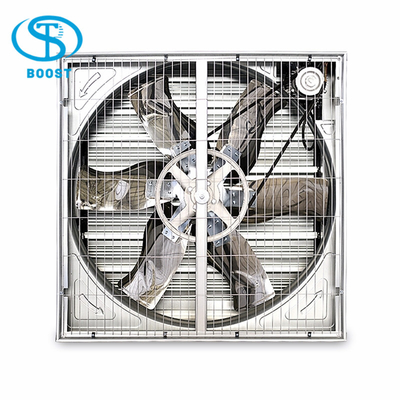

Poultry Farms 1380mm Automatic Shutter Push Pull Fan For Poultry Farm / Livestock House

1 Set
MOQ
$100.00(1 - 49 sets) $89.00(>=50 sets)
prezzo
Poultry Farms 1380mm Automatic Shutter Push Pull Fan For Poultry Farm / Livestock House
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Type: Axial Flow Fan
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Bevera
Customized support: OEM, ODM
Electric Current Type: AC
Mounting: Wall Fan
Blade Material: Stainless Steel
Model Number: BST1380
Voltage: 220V, 380V, Customized
Warranty: 1 Year
After-sales Service Provided: Online support
Product name: Automatic Shutter Push-Pull Fan For Poultry Farm/Livestock House
Size: 1380*1380*450mm
Blade rpm: 439rpm
Motor Brand: China motor/Siemens motor/WEG motor/ABB motor
Power: 1100W
Blade diameter: 1270mm
Application: Poultry Farms,Animal Husbandry,Greenhouse,Factory Worksh
Belt: Japanese Mitsuboshi
Opening Device: Centrifugal Push-Pull
Certificazione: ce,ccc,other
Informazioni di base
Certificazione: ce,ccc,other
Model Number: BST1380
Termini di pagamento e spedizione
Packaging Details: Regular package is Carton box package Bulk shipment ,20FT or 40FT container
Supply Ability: 5000 Set/Sets per Month
Descrizione di prodotto
Products Description

1380mm Automatic Shutter Push-Pull Fan For Poultry Farm/Livestock House

Boost is a professional company engaged in the design and development of air fluid mechanics and temperature control
equipment.Boost exhaust fan widely used in agriculture,flowers,animal husbandry,poultry house,greenhouse,factory workshop.
Model
BST1380
Input Power
1100W
Motor rpm
1400 rpm
Air flow
47000m3/h
Rated power
380v/220V/Customized
Size
1380*1380*450mm
Opening Device
Centrifugal Push-Pull
Model
Drive
Blades Diameter(mm)
Blades Rotational Speed(rpm)
Motor Rotational Speed
(rpm)
Air flow
m³/hr
Input power
(W)
Noise(db)
BST300
Drive
200
1400
1400
1000
120
＜70
BST400
Drive
300
1400
1400
2000
180
＜70
BST480
Diect
380
1400
1400
3000
180
＜70
BST600
Direct
500
(20inch)
1400
1400
5700
370
＜70
BST800
Belt
710
(28inch)
660
1400
18000
370
＜65
BST900
Belt
750
(30inch)
630
1400
22000
370
＜65
BST1000
Belt
900
(36inch)
610
1400
25000
750
＜65
BST1100
Belt
1000
(40inch)
600
1400
32500
750
＜65
BST1220
Belt
1100
(44inch)
460
1400
38000
750
＜64
BST1380
Belt
1270
(50inch)
458
1400
44000
1100
＜64
BST1530
Belt
1400
(56inch)
325
1400
55800
1500
＜64
Detailed Images
1380mm Automatic Shutter Push-Pull Fan For Poultry Farm/Livestock House

Blade:
*Blade is special designed for the biggest efficiency which made of Krupp stainless steel by punch forming.Large air volume,no deformation,no broken,no dust,attractive and durable.
*Thickness 1.2mm,surface finish BA grade.Stainless steel,galvanized and alumium for option.
1380mm Automatic Shutter Push-Pull Fan For Poultry Farm/Livestock House

Fan blades are adjusted by Intalligent dynamic-balance tester, the weight tolerance of each blade is controlled within 1g.
Advantage:
Ensure the fan smooth running,lower vibration,less noise,increase stability.
1380mm Automatic Shutter Push-Pull Fan For Poultry Farm/Livestock House

Belt
Use abroad belts,making sure long service life,free to maintain.
1380mm Automatic Shutter Push-Pull Fan For Poultry Farm/Livestock House
Centrifugal system open :
*Centrifugal system open the shutters at complete go degree to ensure the lowest air resistance and biggest air volume.
*When close,the sealing can efficiently bloce light and wind into the poultry farm house.
*As the first one adopt high quality nylon PA66 to ensure the long service life .
*The fasteners of centrifugal system all are copper rivets,wear-resisting and no rust,flexible,Guide rod is made of 304 stainless
steel,ensure the high strength,no rust,and reduce friction

1380mm Automatic Shutter Push-Pull Fan For Poultry Farm/Livestock House
Motor:
*Both Chinese famous motor and Siemens motor are available.
*Motor voltage and frequency could be customized.
*Chinese famous motor,special design for fan,the first one put forward the phase lack protection device which could power off when
shortage of electricity.
*Motor protection grade IP55,insulation Class:Grade F
1380mm Automatic Shutter Push-Pull Fan For Poultry Farm/Livestock House
Fan belt pulley:
*Fan belt pulley and flange are made of high strength aluminum-magnesium alloy by die-casting.Light weight,lower
vibration.
*Blast-sanding treatment for attractive appearance,eliminate internal stress to improve its own rigidity and stability
1380mm Automatic Shutter Push-Pull Fan For Poultry Farm/Livestock House
Frame:
Farm adopts Hot Galvanized sheet with zinc thickness of 275g/m2,which extremely improve its anti-corrosion performance
shutters:
shutters fixed parts are made of high quality nylon which ensure long service life,open flexibly.Shutters are made of galvanized sheet with thickness of 0.8mm and 1.5mm,ensure shutters no deformation,running stable
1380mm Automatic Shutter Push-Pull Fan For Poultry Farm/Livestock House




More humanized design
Easy to move
Not to be broken
Factory&Workshop
Why Choose Us
BOOST factory is equipped with the most advanced CNC production lines and laser cutting machines, top quality level in the industry, in order to reduce the cost of processing ,sharing profits with customers, ensuring quality , utmost cost-e ffective globally.
We have strong design and research capabilities and experienced production workers. Our products are exported to many countries around the world.

Pre-sales service

* Inquiry and consulting support.
* Sample testing support.
* Visit our Factory..

After-sales service

* Training how to install the machine, training how to use the machine.
* Engineers are available to service machinery overseas.
Packing&Shipping
How To Install
FAQ
Q:Is your company a manufacture or Trading company?
A:We are professional manufacture of Ventilation equipment,Cooling equipment and Heating equipment for poultry,workshop and greenhouse in China
Q:Can you open our own brand?
A:Yes,we can offer OEM/ODM service,put your logo for the produce.
Q:What is your minimum oreder quantity?
A:We accept small order quantity, but the freight cost will be very high
Q:Voltage your can offer?
A:Normal voltage will be 380V-50HZ-3Phase, And it can be customized based on your request.
Q:How about the quality of your product?
A:All the products are produced strictly according to the international standard,which has been passed CE certification,CCC certificated and ISO9001:2008 international quality management system.
Q:Can you accept an inspection of a Third-party detection instituation?
A:Yes,sure. Our products have been inspected by some third-party detection institutions authorized by customs before.and have got perfect inspection report.
